New products
Launch date Products Catalogue
(PDF files)
Features

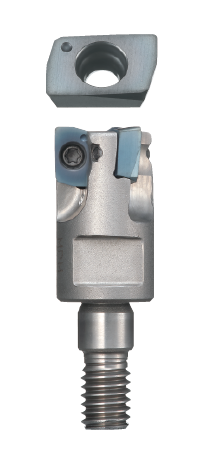

Apr.2022 Series expansion “SHOULDER EXTREAM 11 Series”"
1.76MB

①Economical 4 corners insert. Possible to use not only roughing but also semi-finishing by adopting grinded inserts. Low cutting force SL breaker insert is added to PM breaker for steel.

②Due to unique clamp system possible to mount insert strongly, achieved high efficient machining in roughing.

③Insert grade (PM breaker) is for general steel, mold steel and high hardened steel around 50 HRC, is for unstable machining. Insert grade (SL breaker) has excellent deposition resistance. has excellent in heat shock resistance.

④Modular head type expands the lineup with the addition of oversize body with excellent chip evacuation.

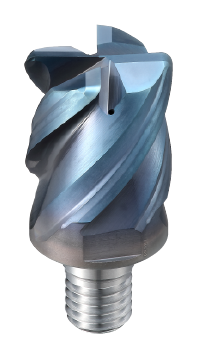

Feb.2022 Solid carbide modular head "BALL S HEAD"
792KB

①Adopting a unique blade shape with a sub-pocket in the center of the cutting edge achieves stable machining with good chip evacuation.

②The torsional angles of the ball and peripheral flutes were increased to reduce cutting resistance and suppress chatter vibration. The R-accuracy of the ball cutting edge is 8μm or less for φ16 and 10μm or less for φ20.

③The use of a ultra-micro grain carbide which has both of hardness and toughness as sub-straight and adapted new DH1 coating with excellent oxidation resistance, impact resistance, and adhesiveness has realized excellent heat resistance and wear resistance and a long tool life.

Nov.2021 5 AXIS SERIES
18.6MB

・「MIRROR-BARREL KRM type」(※φ25, φ30 is expanded) High accuracy indexable barrel tool with peripheral large arc cutting edges.Highly efficient machining with high-precision side and bottom machining.

・ 「MIRROR-BARREL TNM type」 High accuracy indexable tangent barrel tool.High-efficiency machining of continuous three-dimensional curved surfaces.

・ 「MIRROR-BARREL TPM type」 High accuracy indexable barrel tool. Realizes highly efficient machining with side machining with less angle change and corner machining with tip radius.

・ 「MIRROR-BARREL LRM type」 High accuracy indexable lens barrel tool.It achieves highly efficient machining in gentle curved surface.

・「FUJI BARREL FJVA type」High accuracy Solid bottom face barrel tool High efficiency machining of the bottom surface is achieved by tilting the tool and increasing the actual peripheral speed.

・「Solid modular head STLP type」(※φ20 is expanded) High accuracy Solid taper barrel tool It achieves highly efficient machining in tilted surface and shape surface with extremely large Barrel R

Nov.2021 New product, "SHOULDER EXTREME EXSAP-11 type" for high efficient shoulder milling.
14.3MB

SHOULDER EXTREAM 11 Series is highly efficient and high accuracy shoulder milling cutter. This is 11 (smaller) type of SHOULDER EXTREAM

・ Max depth of cut (ap)=10mm. It can be used for wide range of applications such as face milling, slotting and plunging.

・By adopting Arc shaped peripheral cutting edge possible to machine with smaller cusp height.

・Economical 4 corners insert. Possible to use not only roughing but also semi-finishing by adopting grinded inserts. Low cutting force SL breaker insert is added to PM breaker for steel.

・Due to unique clamp system possible to mount insert strongly, achieved high efficient machining in roughing.

・Insert grade (PM breaker) is for general steel, mold steel and high hardened steel around 50 HRC, is for unstable machining. Insert grade (SL breaker) has excellent deposition resistance. has excellent in heat shock resistance.

Oct.2021 New product, "EZ HARD DRILL" for high hardened steel drilling
1.30MB

・The use of a ultra-micro grain carbide which has both of hardness and toughness as sub-straight and adapted new DH1 coating with excellent oxidation resistance, impact resistance, and adhesiveness has realized excellent heat resistance and wear resistance and a long tool life.

・The web thickness is 1.6 times or more than that of previous carbide drills, therefore, flexural and torsional rigidity are improved and can be avoided breakage.

・The chipping resistance has been improved with 15° helix angle and a corner radius on the outer corner. The chipping resistance on the center edge and chip evacuation has been improved with a thinning shape suitable for hard materials.

EZN2D~4D type:Jul.2021
EZN5Dtype: Aug.2021
New product, "STRIKE DRILL" for drilling
4.11MB

・New thinning geometry makes stable chip evacuation from biting till hole ends therefore, possible to get accurate hole size and position.

・New margin shape has rigidity and burnishing action, which reduce frictional resistance and cutting force resistance. EZN5D type has double margin as well, it achieved excellent surface roughness, longer tool life with accrete hole.

・Due to the surface treatment can be helped to prevent build up edge and lower friction coefficient, therefore, can be avoided breakage problem caused by burr, stuck of chips.

・Adopted micro-grain carbide and DV coating which is good for oxidation and heat resistant.It achieved high accuracy and long tool life during high speed machining for various materials such as general steel, Mold steel, stainless steel.

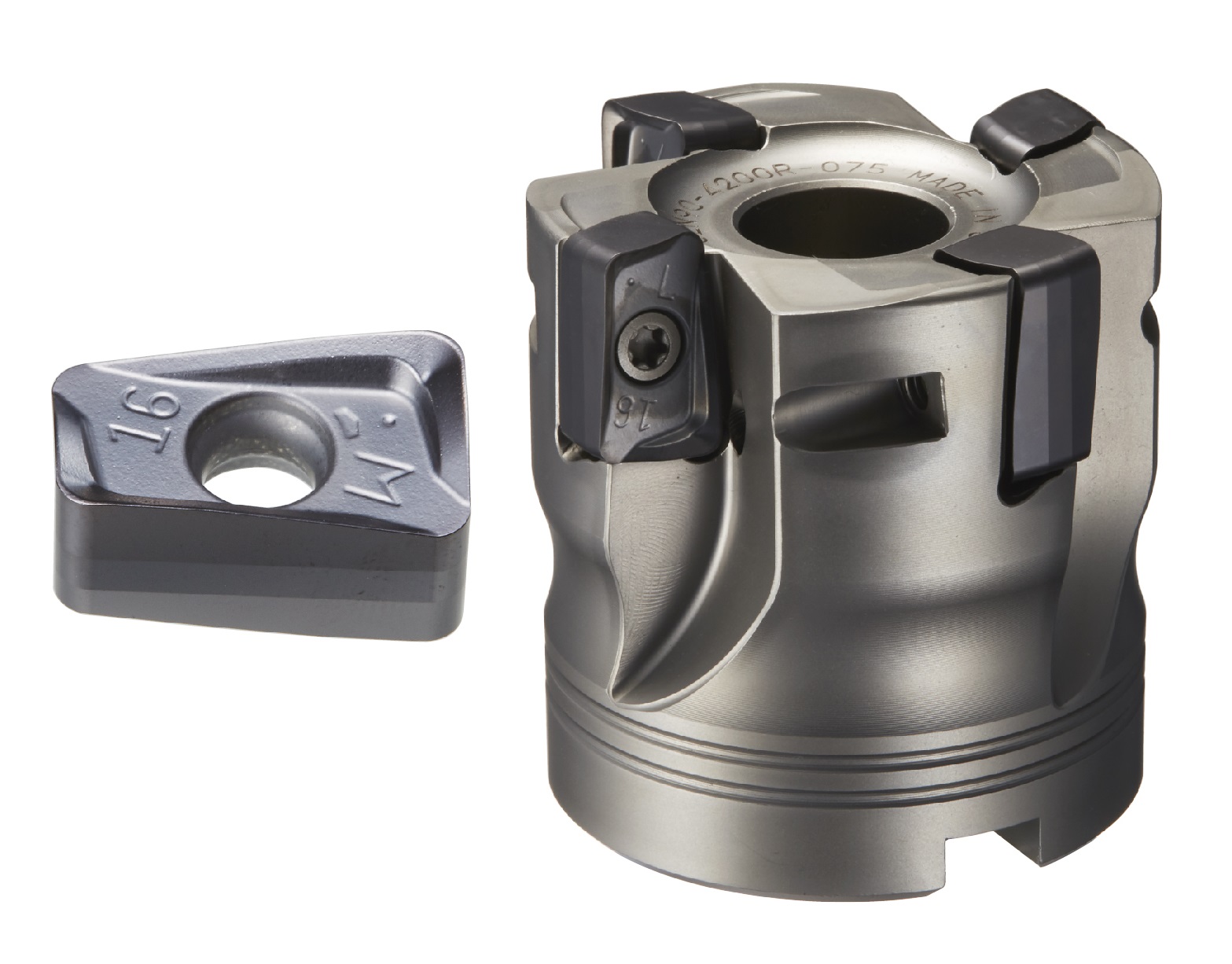

Apr.2021 New product, "SHOULDER SIX" for high efficient shoulder milling with six corners.
5.33MB

・SHOULDER SIX has high rigidity (or rigid body) and provide excellent metal removal rate. Max depth of cut (ap)=10mm. It can be used for wide range of applications such as face milling, slotting and plunging.

・Economical double-side insert(6 corners).2 different corner radiuses, R0.8 and R1.6 are available,Rigid 7.5mm thickness insert makes it possible to do stable machining for rough machining. Moreover, even double side insert, EXSIX achieves to reduce the cutting resistance. Because axial rake angle is positive, due to our unique 3D geometry.

・Because of arc-geometry on the periphery cutting edge,SHOULDER SIX achieve highly efficient and high precisions machining for vertical wall.

・Insert grade: is for General steel and mold steel less than 35HRC. is for Cast iron and High hardened die steel less than 50HRC.

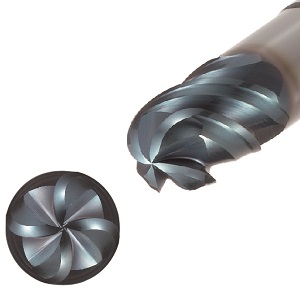

Apr.2021 New product, "One-Cut 70 with DH coating" for high hardened die steel up to 70 HRC
1.85MB

・Adopting high rigid design achieves high speed and high efficient machining.

・Due to unique geometry, it is possible to reduce cutting force. h5 tolerance of shank diameter minimize tool runout accuracy. It makes possible to do high-precision machining from semi-finishing to finishing process.

・Adopting PVD coated grade “DH102” gives stable and high precision machining on high hardened materials. “DH1 coating”, multi nano-layer PVD coating perform longer tool life on high hardened materials.

・Radius part of corner Radius adopted shape of negative lead gash. In addition, we made smoothly joint between corner Radius and peripheral edge. Because of that, it achieved high chipping resistance and high efficiency machining.

Apr.2021 Size expansion (φ80) for “Multi EXTREME”.
1.39MB

・Same insert fits into 2 types of holders.HF type is for high feed machining, and Max depth of cut is ap=2mm.SM insert is possible to do shoulder milling, face milling, vertical wall milling, and corner milling. In addition, SM type has groove for identification.

・Economical double-side insert (6 corners).

Due to multi blades specification, achieved high efficient machining.

・Adopting dovetail-shaped for binding only need one screw to strongly fix with an insert. It can reduce insert movement and achieved long tool life.

・Insert grade is for General steel, Mold steel and High-hardened steel less than 50 HRC. is especially for unstable machining.

Apr.2021 Size expansion (inch size for facemill) for “SHOULDER EXTREME”.
5.33MB

・Inch size for facemill (φ80, φ100, φ125)are available.

・Max. depth of cut (ap)=15mm is possible. EXSAP / MSX are usable for wide applications.

・Economical double-side insert (4 corners). Corner R size is R0.4, R0.8 & R1.6. Due to high precision G class periphery grinding, applicable to not only roughing process but semi-finishing process.

・Adopted low cutting force 3D chip breaker insert with strong edge. Due to unique clamp system possible to mount insert strongly, achieved high efficient machining in roughing.

Jan. 2021 New product, " HARD-ONE RADIUS", DH coated solid carbide radius end mill series for high hardened die steel up to 70HRC.
2.19MB

・Adopted high rigidity web thickness and super short flute length(1D)acheieves high efficient machining from roughing to finishing.

・Seamless geometry of coner radius & peripheral cutting edge provides a good surface roughness. Un-helical pitch and irregular helix flutes solved vibration problem.

・Possible plunge milling L/D≦0.2 and pocket milling.

・"DH110", multi nano layered PVD coating on super micro grain base material, perform longer tool life at machining high hardened materials.

Jan. 2021 Series expansion, new insert for "QM MAX GⅡ".
1.57MB

・"QM Max GⅡ" is high feed efficient roughing cutter.The series will be expanded to new shapes for machining high hardened materials and new grades with conventional shapes.

・New shape insert "ENMU100312ZER-HL" for machining high hardened material up to 60HRC will be expanded.The insert has secure strength because of straight cutting edge & low breaker angle.

・New shape insert "ENMQ100312ZER" for machining high hardened material over 60HRC will be expanded.The insert has secure strength because of no breaker.

・”ENMU100412ZER-SL" insert has lowcutting force breaker.It will be expanded new grade JC7518 For machining Inconel.

・”ENMU100412ZER-PH” insert has general breaker. It will be expanded new grade JC8050 to complement between conventional grade.

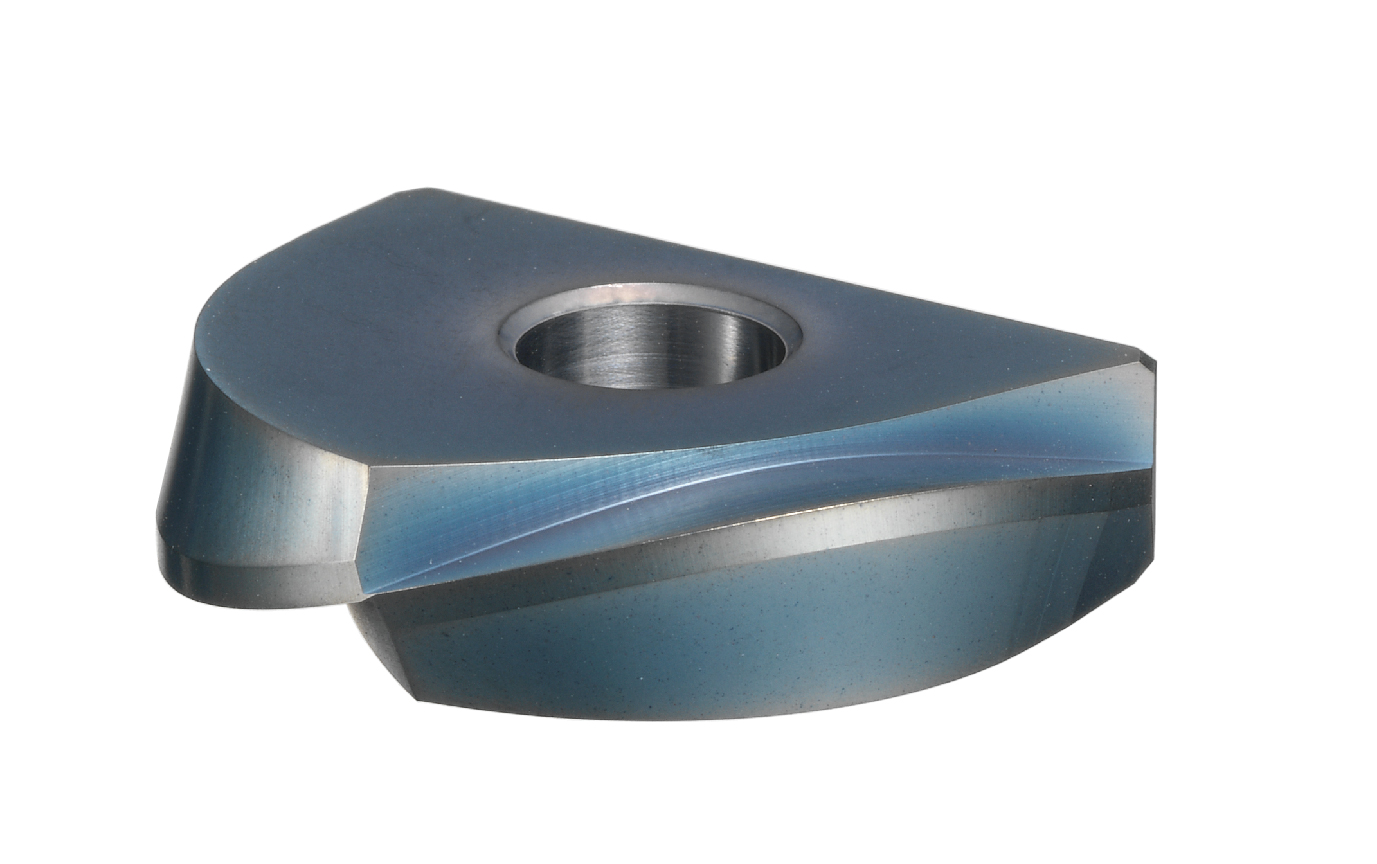

Dec. 2020 Series expansion, new insert grade DH111 for “MIRROR BALL”.
721KB

・New PVD coated grade “DH111” achieved: Wide application / 2 times longer tool life compared with conventional tool / high precision machining / both dry & wet cutting.

・Radius form accuracy of insert: below ±0.006mm or ±0.002mm.

・Best suite for high precision machining over 180 degrees radius contact such as turbine blade machining.

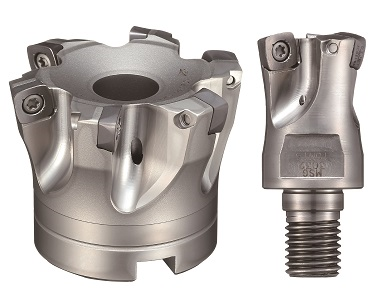

Nov. 2020 High feed cutter for hard-to-cut material"SKS-GⅡ 09 type"
1.87MB

・Achieved Max ap=0.9mm even if difficult-to-machine materials.

・Designed for Ni-base heat resistant alloy, titanium alloy and hardened stainless steel.

・Multi-edge design enables high efficiency machining.

・Excellent cutting performance due to low cutting force and sharp cutting edge design.

・2 insert grades are available.PVD coated grade"JC7550" achieved excellent thermal shock resistance.PVD coated grade "JC7518" is adopted substrate which has both wear resistance and fracture toughness. And it is adopted coating which has welding resistance. Suitable for titanium, stainless steel, and heat-resistant alloy.

Jul. 2020 Series expansion, large size body & R2/R3 insert for “SHOULDER EXTREME”.
4.45MB

・Large size body and R2/R3 insert are available.

・Max. depth of cut (ap)=15mm is possible. EXSAP / MSX are usable for wide applications.

・Economical double-side insert (4 corners). Corner R size is R0.4, R0.8 & R1.6. Due to high precision G class periphery grinding, applicable to not only roughing process but semi-finishing process.

・Adopted low cutting force 3D chip breaker insert with strong edge. Due to unique clamp system possible to mount insert strongly, achieved high efficient machining in roughing.

May. 2020 New product, "MULTI EXTREME" possible to high feed machining and shoulder milling.
2.16MB

・2 types of holder is available by using same insert: HF type for high feed machining & SM type for shoulder milling, possible to facemilling, vertical wall milling, and corner milling.

・Economical double-side insert (6 corners).

・Dovetail-shaped binding face.

・2 insert grades can be widely applied such as general & mold steel and high hardened die steel less than 50HRC.

Apr. 2020 New product, "Spot facing drill" for deep hole drilling (3D,5D).
1.28MB

・Achieved high accurate drilling due to excellent chip control by wide flute design.

・Possible to shorten working process even if drilling slope surface and crossed hole, due to reduces curve of the formed hole and burr.

・Improved drill rigidity, adopted double margin and low cutting force flute geometry, achieved stable deep hole drilling (3D, 5D).

・Achieved longer tool life by adopting “DV Coating” with fracture toughness & wear resistance and smooth surface treatment.

・Widely applied from carbon & mold steel to stainless steel, cast iron & aluminum alloy.

Mar. 2020 Serie expansion, “new shoulder milling insert” ZOMT-PL type for QM MILL.
6.30MB

・QM MILL have extensive lineup (PL breaker shoulder milling insert from semi-finishing to finishing side & bottom face).

・Adopted 2 grades: PVD coated grade “JC8118” with high versatility, and PVD coated grade “JC8050” suitable for stainless steel.

Jan. 2020 New product, "SIGMA DRILL-HARD DH-Coat" for high hardened steel up to 70HRC.
705KB

・Stable drilling high hardened materials up to 70HRC. By adopting “DH1” coating which provides high hardness & oxidization resistance, improved wear resistance and gives longer tool life. Adopting micro grain carbide with high toughness, improved chipping resistance.

・High drill rigidity. Over 1.6 times thicker web thickness than general solid carbide drill.

・Helix angle 15 degrees. Corner radius at outer corner prevents chipping at outer corner. Adopting the exclusive thinning for high hardened material improved the chipping resistance at center and chip ejection.

Dec. 2019 Serie expansion, "QM MAX" insert & modular head.
3.73MB

・High Precision QM Max: Improved balance of holder than conventional holders. Lineded up high precision H grade inserts. High efficient machining is possible by adapting malti-blades specification.

・Shoulder milling insert ZPMT-PL type: From roughing to semi-finishing & finishing for QM MAX MQX / QXP type. Added new grade "JC8050" suitable for unfavorable conditions of stainless steel, carbon steel, & die steel.

Nov. 2019 New product, "TULIP S-HEAD" STLP type (for 5-axis machining).
1.03MB

・Radius on tapered edge: R1500mm. Form accuracy: below +/- 10μm.

・Possible high efficient machining by adopting 4 flutes.

・New PVD coated grade DH115, applications from hard-to-cut materials to high hardened materials.

Nov. 2019 New product, "MIRROR BARREL" KRM type (for 5-axis machining).
1.03MB

・High precision indexable barrel tools for finishing with large R-shaped side cutting edge.

・Achieves high precision and high efficient finishing on tapered walls and bottom face.

・Uses standard Mirror Radius modular head.

Sep. 2019 Serie expansion, modular head TLZD type for spot facing.
3.88MB

・Suitable for spot facinig in case of long overhung length such as stamping die or large-sized mold part.

・Size range: φ14-φ32mm dia. And even in case of long overhung length, stable machining can be possible by combination with MSN carbide shank holder.

Jul. 2019 Renewed, "EXTREME DIEMATE" EXTDM/MTX type.
1.69MB

・MM breaker insert: Adopted unique helical cuting edge with edge sharpness and strength by unique helical cutting edge. Suitable for stainless steel & titanium alloy.

・PM breaker insert: Adopted strong cutting edge can be widely applied from general & mold steel to hardened die steel.

Jun. 2019 Series expansion, "end mill type & SL breaker insert (low cutting force) " for QM MAX GⅡ.
1.50MB

・Low cutting force inserts with optimum cutting edge for high feed machining.

・Economical double-side insert (4 corners).

・Strong edge PH breaker insert and low cutting force SL breaker insert are available.

・3 insert grades “JC8118”, “JC7550” & “JC7560” can be widely applied from general & mold steel to hardened die steel, high strength stainless steel & titanium alloy.

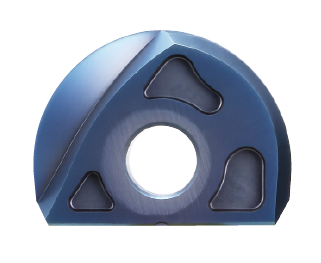

Jun. 2019 Series expansion, "TS insert BNM-TS type" for MIRROR BALL.
500KB

・Low cutting force TS insert BNM-TS type achieved both edge sharpness and strength, and suitable for high hardened materials.

・Adopted new PVD coated grade "DH202" by combination of super micro-grain carbide and "DH2 COATING", perform longer tool life on high hardened materials.

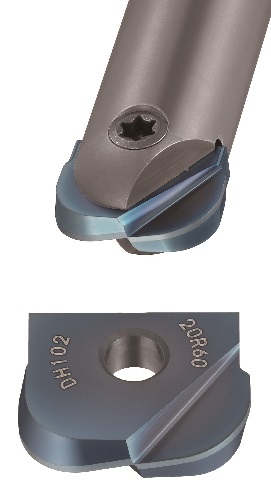

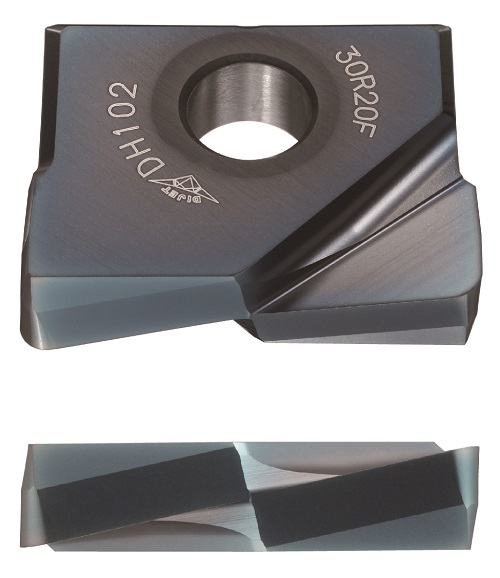

Apr. 2019 Serie expansion, "DH Coating & corner radius type" for ONE-CUT 70.
633KB

・Adopting high rigid design achieves high speed and high efficient machining.

・Due to unique geometry, possible to reduces cutting force and to performs high precision in semi-finishing and finishing process.

・Adopted PVD coated grade "DH102" gives stable and high precision machining on high hardened materials. "DH COATING" , multi nano-layer PVD coating perform longer tool life on high hardened materials, over 55HRC.

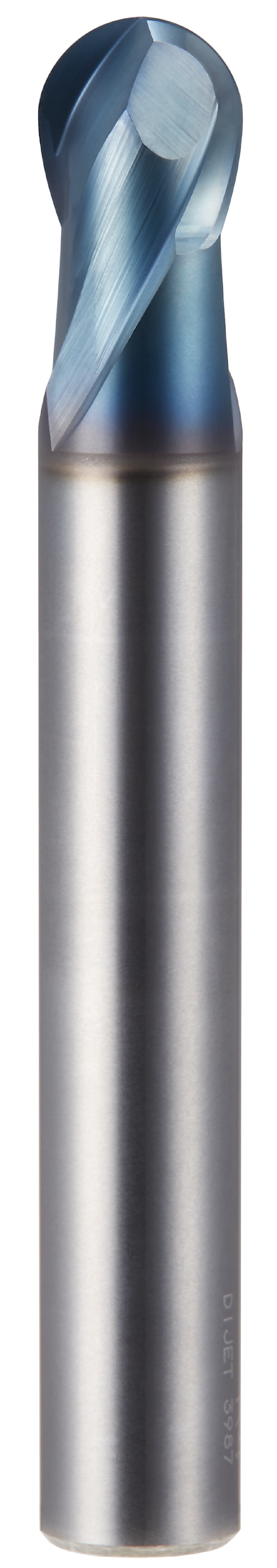

Apr. 2019 New product, “HARD-ONE BALL” SFSB type.
931KB

・Adopting super short flute length (1D) achieves high efficient machining from roughing to finishing.

・Due to seamless geometry of radius & peripheral cutting edge, achieves good surface roughness and prevents chipping in case of machining.

・ High precision shank tolerance (h5).

・Adopted PVD coated grade "DH110" by combination of super micro-grain carbide with excellent sharpness and "DH1 COATING", multi nano-layer PVD coating, perform longer tool life on high hardened materials.

Feb. 2019 Serie expansion, "new insert with chipbreaker" for SKS-GⅡ.
1.34MB

・SKS-GⅡ have extensive lineup (PM & SM breaker insert).

・Insert size SPMT10 or SPMT14 type are available by type of machining.

・Two types inserts with chipbreaker are available (SM breaker for titanium alloy & stainless steel or PM breaker for mold material).

・Due to low cutting force geometry insert, stable machining in mold material is possible even in case of using low power machine or long overhung tool.

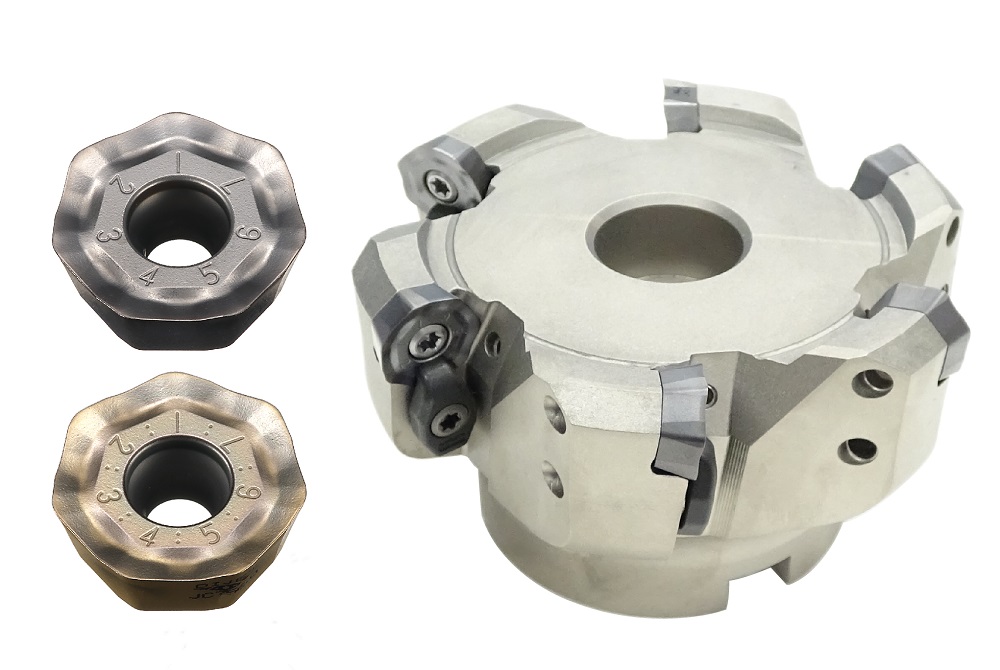

Jan. 2019 Serie expansion, “HEPTA MILL facemill” HEP-FM type & “ML breaker insert”.
1.64MB

・HEPTA MILL have extensive lineup (facemill type & ML breaker insert).

・Adopted low cutting force & economical 7 corners positive insert. Heptagon insert gives maximum 7 times indexability when ap=5mm or less, and Max. depth of cut 12mm is possible.

・Cutting forces are reduced due to outer edge and inner edge has side and face clearance so high feed can be achieved in case of deep cutting.

・Due to control the vibration, ML breaker insert improved productivity. And new PVD coated grade “JC8118” & "JC7550" can be widely applied from cast iron, general & mold steel to hard-to-cut materials such as stainless steel & Ti-alloy.

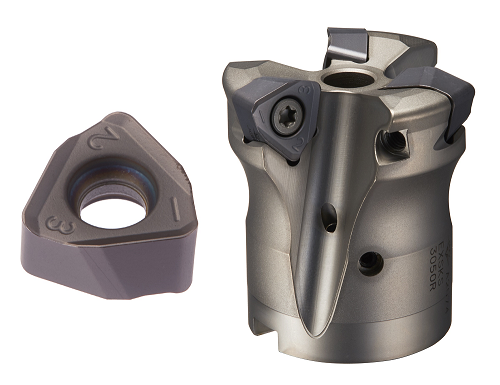

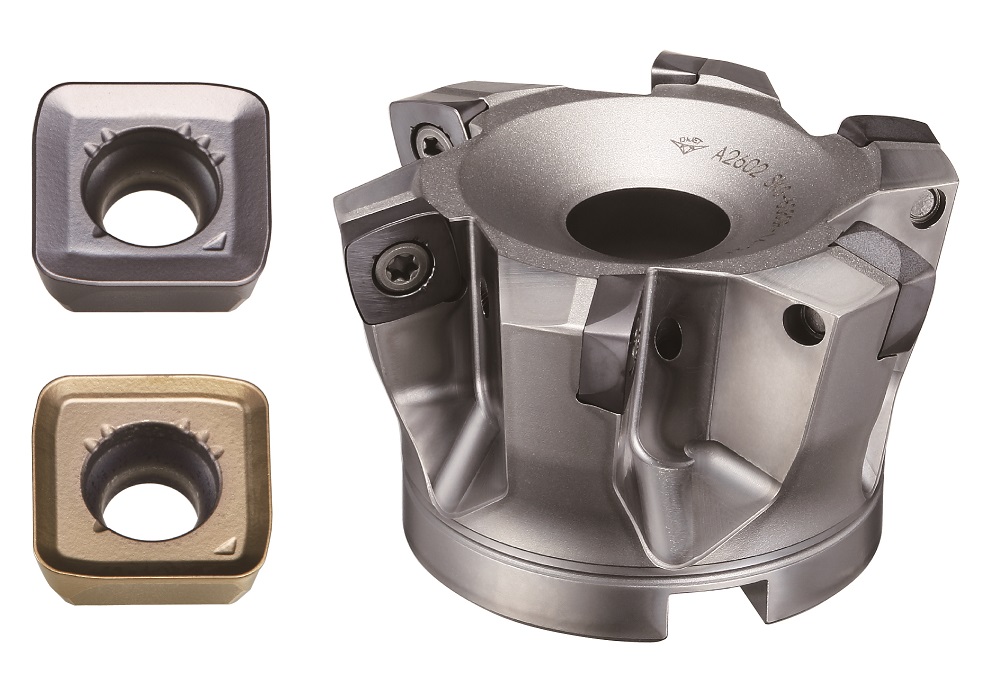

Jan. 2019 New product, “SHOULDER EXTREME” EXSAP / MSX type.
1.25MB

・Large ap machining is possible (Max. depth of cut (ap)=15mm). EXSAP / MSX are usable for wide applications such as face milling, slotting and plunging.
・Due to arc-geometry on the periphery cutting edge, cusp height can be smaller even in case of large ap and achieved high efficient & high precision machining for vertical wall.
・Economical double-side insert (4 corners). Due to high precision G class periphery grinding, applicable to not only roughing process but semi-finishing process.
・2 insert grades are available: PVD coated grade “JC8050” achieved both fracture toughness and wear resistance. PVD coated grade “JC8118” provided high versatility and can be widely applied such as general & mold steel and high hardened die steel less than 50HRC.

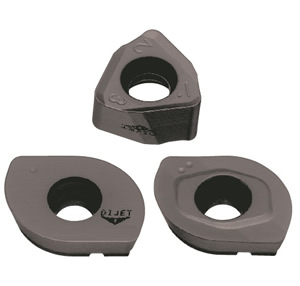

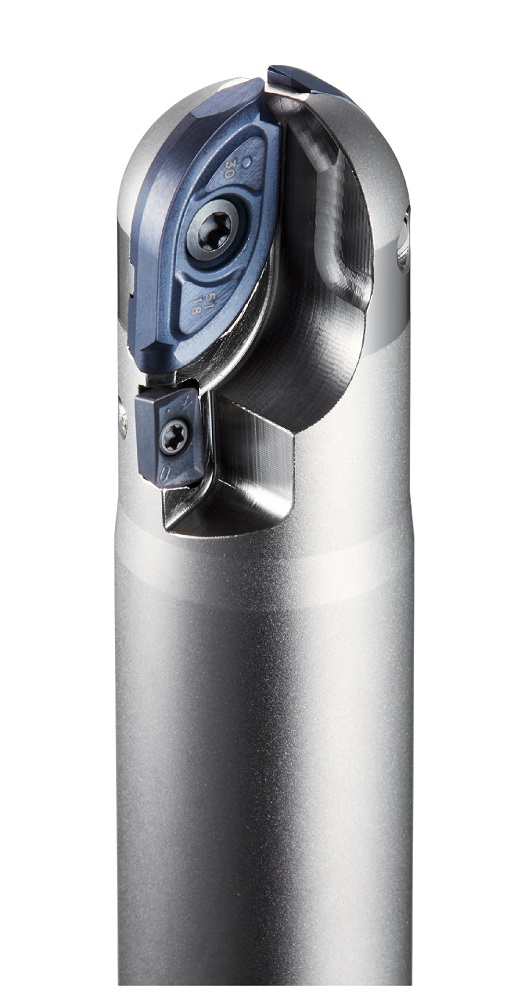

Nov. 2018 New product, “SWING BALL-NEO” SWBX / MSWX type.
6.95MB

・Unique key on the body and insert fixes the inserts strongly and enables stable roughing process & machining welding parts for die in 3D machining.
・Applicable to not only roughing process but also semi-finishing process due to high repeatability on mounting insert.
・Adopted new PVD coated grades “JC5240” for steel and “JC8118” & “JC8015” for cast iron, mold steel, welding & hardened die steel.

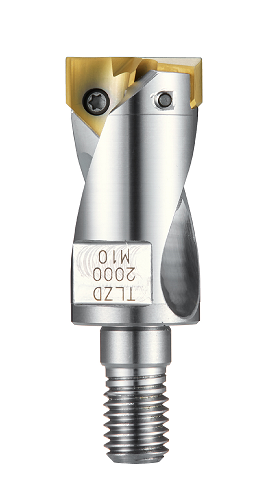

Jun. 2018 New product, new modular head TLZD type for spot facing.
1.56MB

・New modular head TLZD type for spot facing, can be stable machining even if long overhung length.
・Suitable for spot facinig in case of long overhung length such as press mold or large-sized mold part.
・Achieved non-step drilling without pilot hole even if drilling slope surface and crossed hole.
・By adopting new PVD coated grade “JC7550” and unique coolant system, achieved longer tool life even if drilling mold steel or stainless steel.

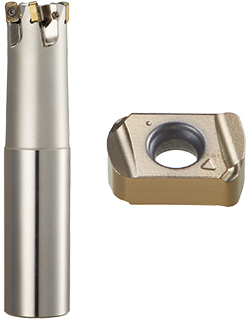

Jun. 2018 Serie expansion, “new shoulder milling insert” ZPMT-PL/NL/SL type for QM MAX.
1.06MB

・Series expansion, new shoulder milling insert from roughing to semi-finishing & finishing for QM MAX MQX / QXP type.
・3 type available: for steel ZPMT-PL type, for aluminum alloy ZPMT-NL type, and for Ti alloy ZPMT-SL type.
・Adopted 5 insert grades: “DH102”, “JC8118” and cermet “CX75”. Moreover, added new PVD coated grade “JC7518” and uncoated grade “FC18”. These grades can be widely applied from general & mold steel to hardened die steel & Ti alloy, etc.

Jun. 2018 Serie expansion, “coarse pitch type & new coated insert grade” for SKS EXTREME.
716KB

・Coarse pitch type achieved low cutting force & smooth chip ejection.
・Possible to high feed machining on fz=2mm/t in case of Max. depth of cut (ap)= 3mm.
・Economical double-side insert (6 corners).
・Insert thickness: 7.5mm improved strength by 1.5 times compared with conventional tool.
・New PVD coated grade “JC8050” can be widely applied for carbon steel, mold steel, and stainless steel.

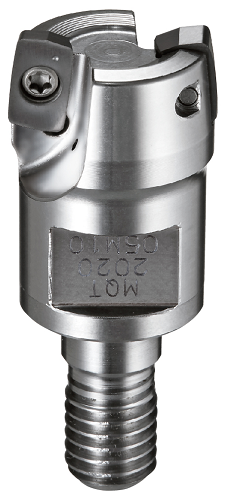

Apr. 2018 New product, "High precision QM MAX" MQT type.
1.80MB

・Improved balance of holder than conventional holders. Possible to adapt multi-machining machines such as 5 axis machines. Lineded up high precision H grade inserts. High efficient machining is possible by adapting multi-blades specification.
・Lineuped holders with cutting edge angle 3°、5°. Complex shape machining with inclination is possible by 3 axis machine.
・Adopted 2 grades: PVD coated grade “JC8015” for general & mold steel, stainless steel and cast iron. Cermet grade “ CX75” for improving surface roughness.

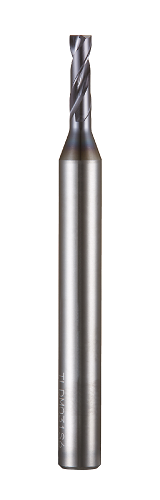

Apr. 2018 Serie expansion, “S6 shank type” for Spot facing drill TLDM type.
784KB

・TLDM type have extensive lineup (6mm diameter shank type).
・Stable drilling without pilot hole even if drilling slope surface and crossed hole.
・Controlled burr in case of drilling thin plate.
・Due to wide flute design, TLDM achieved excellent chip control.

Jan. 2018 Serie expansion, “Strong edge type PH breaker insert” for QM MAX GⅡ.
3.52MB

・Indexable high efficient roughing cutter with economical double-side insert (4 corners).
・New strong edge type “PH breaker insert” is excellent in fracture resistance and applicable to heavy cutting. Achieved longer tool life.
・2 insert grades “JC8118” & “JC7560” can be widely applied from general & mold steel to hardened die steel & high strength stainless steel.

Jan. 2018 New product, "Anti-vibration S-HEAD" SMSR type.
1.05MB

・For deep cutting or finishing of aircraft & mold parts.
・By adopting new PVD coated grade “DH115”, apply wide application area.
・Un-equal pitch & irregular helix flutes are excellent in anti-vibration.
・By adopting positive rake & coolant hole, able to machining Ti-alloy & heat-resistant alloy.

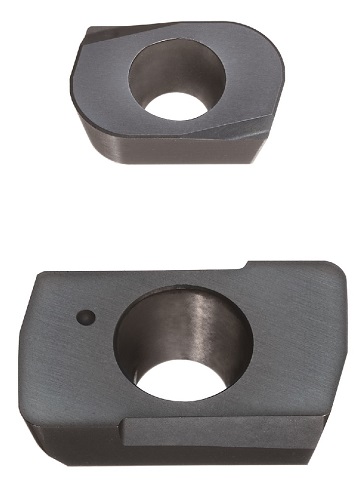

Jan. 2018 Serie expansion, “full radius geometry insert” BNM-SSR type for MIRROR BALL.
345KB

・Best suite for machining over 180 degrees radius contact. For example turbine blade machining.
・Full radius geometry reduces chattering problem on machining vertical wall.
・Adopted new PVD coated grade "DH108", and the grade can be widely applied from general & mold steel to stainless steel & cast iron.
・Radius form accuracy of inserts: below ±0.006mm.

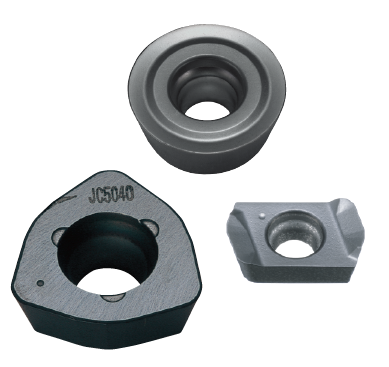

Jan. 2018 New PVD coated grade, "JC8118" for rough milling inserts.

・New PVD coated grade "JC8118" has both wear-resistance and chipping resistance.
・Applied for wide aplication area such as mold steel & high hardened material less than 50HRC, and achieved longer tool life.
・Adopted "JC8118" for QM SERIES, HIGH FEED DIEMASTER, and SUPER DIEMASTER.

Oct. 2017 New product, high feed machining cutter with 4 corners "SKS-GⅡ" SKG / MSG type.
1.00MB

・Applicable to deep cutting of mold material or high feed machine aircraft parts that made of titanium alloy & stainless steel. ・Adopted low cutting force & economical 4 corners positive insert, achieved stable high feed machining.
・Large ap machining is possible. (Max.ap=1.5mm in case of using insert 10-type & Max.ap=2.5mm in case of using 14-type insert)
・3 insert grades “JC8118”, “JC8050” & “JC7550” can be widely applied from general & mold steel to hard-to-cut materials such as high hardened die steel, titanium alloy & stainless steel.

Oct. 2017 Serie expansion, “SS INSERT” BNM-SS type for MIRROR BALL.
188KB

・Adopted new PVD coated grade "DH108", and the grade can be widely applied from general & mold steel to stainless sttel & cast iron.
・Radius form accuracy of inserts: below ±0.006mm.

Apr. 2017 indexable spot facing drill TLZD type, have extensive lineup.
1.58MB

・TLZD achieved non-step drilling without pilot hole even if drilling slope surface and crossed hole.
・TLZD type have extensive lineup (14 to 20mm dia. at every 0.1mm dia.).

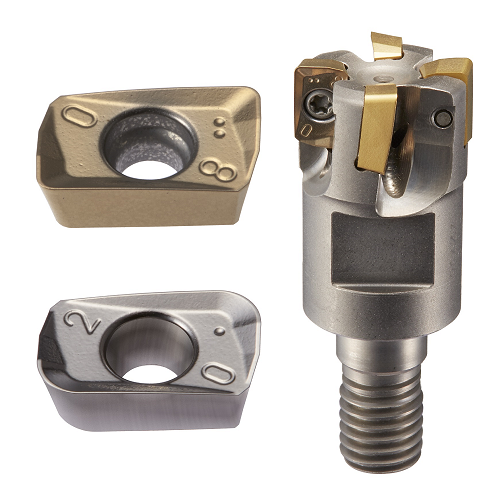

Apr. 2017 Series expansion, "MIRROR INSERT" for QM MILL. Achieved high efficient finishing side & bottom face.
915KB

・"MIRROR INSERT" for high efficient finishing side & bottom face.
・Adopted 2 grades: PVD coated grade “JC8015” for general use in case of machining carbon steel, cast iron & stainless steel. / New PVD coated grade “DH102” suitable for high speed machining in high hardened material.
・Adopted 3 corner radius type: R0.3, R0.5 & R0.8.

Nov. 2016 New product, indexable spot facing drill TLZD type.
1.58MB

・TLZD can be used repeatedly only by exchanging insert. Easy assembly of insert & body.
・Achieved non-step drilling without pilot hole even if drilling slope surface and crossed hole.
・By adopting new PVD coated grade “JC7550” and unique coolant system, achieved longer tool life even if drilling mold steel or stainless steel.
・By adopting exclusive design body & high rigid "G-body", achieved stable machining.
・Controlled burr in case of drilling thin plate.

Nov. 2016 Spot facing drill TLDM type, have extensive lineup (small diameter type).
657KB

・TLDM type have extensive lineup (1 to 2.9mm dia. at every 0.1mm dia.).
・Stable drilling without pilot hole even if drilling slope surface and crossed hole.
・Controlled burr in case of drilling thin plate.
・Due to wide flute design, TLDM achieved excellent chip control.
・Adopted exclusive cutting edge for small dia.

Oct. 2016 New product, indexable radius cutter for hard-to-cut material with double-side insert "EXTREME DIEMATE" EXTDM / MTX type.
2.57MB

・Achieved edge sharpness and strength by unique helical cutting edge. Adopted radius insert suitable for turbine blade machining.
・Economical double-side insert (8 corners).
・Unique insert rotation preventing structure: Due to wedge-shaped binding face of insert prevents movement of inserts. Able to stable machining.

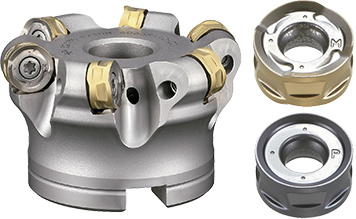

Sep. 2016 New product, indexable cutter for high efficient roughing with economical double-side insert "QM MAX GⅡ" GMX / MXG type.
3.52MB

・Insert thickness: 4mm improved strength by 1.2 times compared with conventional tool. And, by adopting optimum cutting edge, achieved stable machining under the wide range of cutting conditions.
・Low cutting force & economical double-side insert (4 corners) with 3-dimensional breaker.
・2 insert grades “JC8118P” & “JC7560P” can be widely applied from general & mold steel to hardened die steel & high strength stainless steel .

Sep. 2016 Series expansion, small diameter type for round insert cutter "BLADE-CHIPPER" TDM / MTD type.
661KB

・Has extensive lineup of small diameter type for machining small to medium-sized turbine blade.
・Available now medium or heavy type inserts.

Jan. 2016 New product, 4 flutes solid carbide ball nose end mill for high hardened material up to 70HRC. "ONE-CUT BALL 70" DH-OCHB type.
2.82MB

・Possible to roughing to finishing, due to tolerance of R ±8μm.
・High efficient machining is possible due to 4 flutes.
・High rigidity of tool and un-equal pitch control the vibration.
・Achieved low cutting force due to helix angle 45°, and provided good cutting performance.
・Adopting unique flute geometry at the center point achieved good chip ejection & stable machining.
・Adopted new PVD coated grade “DH102” by combination of newly developed DH COATING & super micro-grain carbide suitable for high hardened material. Achieved longer tool life.

Jan. 2016 Series expansion, new PVD coated grade “JC8118” for SKS EXTREME & WILD RADIUS.
3.83MB

・New PVD coated grade “JC8118” is the first recommendation for mold steel & high hardened steel less than 50HRC and achieved longer tool life.
・Wide application: 2 insert grades ”JC7560” & “JC8118” are suitable for general steel, cast iron, high hardened steel & stainless steel.

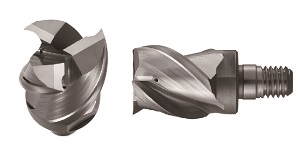

Jan. 2016 New product, solid modular head "S-HEAD for aluminum alloy" SMAL type.
1.34MB

・Solid modular head combined with carbide shank MSN type.
・Adopted the cutting edge geometry suitable for aluminum alloy machining. Positive geometry with helix angle 45° & rake angle 20° achieved sharpness and high precision machining.
・3 flutes achieved both good chip ejection and high efficient machining.
・Adopting coolant hole can be possible surely coolant supply to cutting edge, so prevented welding and improved chip ejection.
・Adding over size type(Dc>Ds) also enables machining at corner wall.

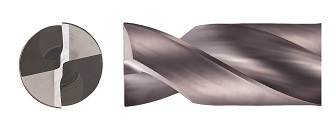

Nov. 2015 Spot facing drill TLDM type, have extensive lineup.
699KB

・TLDM type have extensive lineup (3 to 12mm dia. at every 0.1mm dia.).
・Stable drilling without pilot hole even if drilling slope surface and crossed hole.
・Controlled burr in case of drilling thin plate.
・Due to wide flute design, TLDM achieved excellent chip control.
・Reduced cutting force by 20% compared with competitor.

Sep. 2015 Series expansion, new radius insert GRM type for MIRROR BALL.
4.96MB

・Reduced the hand finishing and try out times by improved surface quality.
・Body durability is higher than ball nose end mill with same radius, therefore prevents chattering problem, and larger pick feed improved machining efficiency.
・Possible to high precision & high efficient machining even in case of low speed machine.
・Adopted new PVD coated grade “DH102” suitable for high hardened material, and PVD coated grade “JC8015” for general steel.

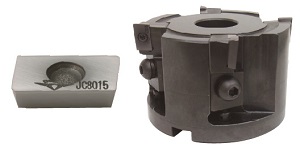

Sep. 2015 Series expansion, high efficient super finishing FJM-F4 type & shoulder milling FJM-BD type for FINISH JET MILL.
3.87MB

・Able to super finishing on reference surface of bottom face of die & mold.
・3 type bodies are available. FJM type: The combination of 2 finishing & 2 roughing cartridges gives stable finishing quality in case of un-reliable finishing stock on cast iron and cast steel, etc. FJM-F4 type:4 finishing insert type achieved further efficient machining in case of ap= below 0.1mm. FJM-BD type: For shoulder milling.

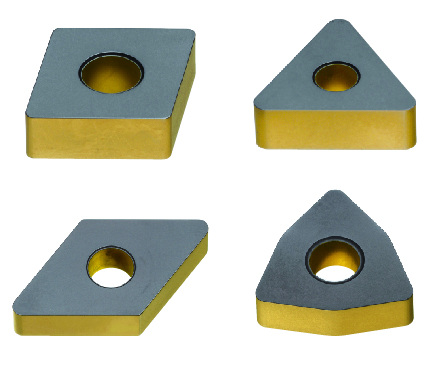

Aug. 2015 Series expansion, new CVD coated grade "JC108W" for cast iron at turning processing.
1.86MB

・For cast iron at turning process with very hard impact.

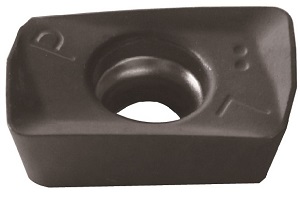

Jul. 2015 Series expansion, shoulder insert from semi-finishing to finishing side & bottom face ZPMT-PL type for QM MAX.
6.5MB

・Shoulder insert from semi-finishing to finishing side & bottom face.
・Adopted 3 grades: PVD coated grade “JC8015” that showed stable performance in raw material up to 36HRC, cast iron, and stainless steel. / New PVD coated grade “DH102” suitable for high speed machining in high hardened material. / Cermet “CX75”.

Jul. 2015 Series expansion, new PVD coated grade "DH102" for QM MAX and QM MILL insert.
6.5MB

・Adopted new PVD coated grade “DH102” suitable for high hardened material.
・Apply to insert for QM MAX and QM MILL.

May 2015 Series expansion, new MIRROR RADIUS insert for side & bottom face finishing FRM type.
4.96MB

・Side & bottom face finishing for high hardened steel, etc.
・Adopted new PVD coated grade “DH102” suitable for high hardened material, and PVD coated grade “JC8015” suitable for general steel.
・Adopting positive rake cutting edge achieved low cutting force and sharpness. And available 25mm & 30mm dia.

Apr. 2015 Series expansion, new PVD coated grade "DH102" of strong edge insert for MIRROR BALL.
4.96MB

・Suitable for severe conditions, such as long overhung length, welding, plunging, and machining different material at the same time.
・Adopted new PVD coated grade “DH102” suitable for high hardened material.
・Adopting negative rake cutting edge achieved longer tool life even high speed machining on hardened materials, over 60HRC.

Apr. 2015 Series expansion, new PVD coated grade "JC7560" for QM MILL inserts.
686KB

・For high efficient heavy milling in general steel up to 35HRC.
・Improved heat-fracture resistance & impact strength.
・Apply to insert for QM MAX, HIGH FEED DIEMASTER, HEPTA-MILL, and QM MILL.


DIJET INDUSTRIAL CO., LTD
Get ADOBE READER   Get Flash player
2-1-18, Kami-Higashi, Hirano-ku, Osaka 547-0002, Japan
TEL.06(6791)6781 FAX.06(6793)1221

Copyright 2008 DIJET, Co., LTD. All Rights Reserved.
